Surface mounting enclosures series C are intended for indoor application. They are produced from Acrylonitrile Butadiene Styrene (ABS), a material with shiny, impervious surface and the most important mechanical properties: resistance and toughness. ABS can be used between -25 and 60°C and is considered superior for its hardness, gloss, toughness and electrical insulation properties. Enclosures are completely assembled whit all necessary parts.



Advantages of the
C series

Thanks to the good technical properties and modern design, enclosures series C can be used in all residental, business and catering facilties.

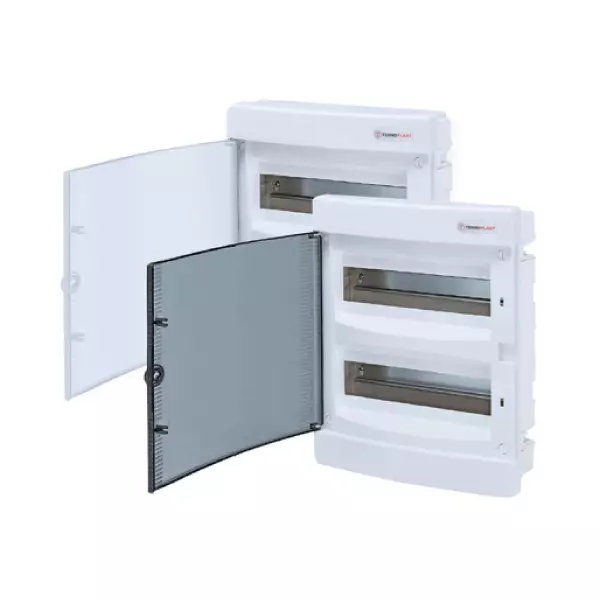

A door can be transparent or white, made from ABS which conributes to elasticity and firmness.

Possibility of using a metal lock with key, simply by removing the plastic cap from the door.

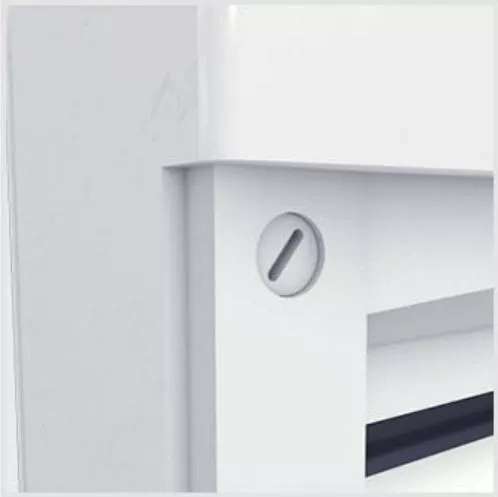

Easy and fast connection of front mast to the base by turning plastic screws for 1/4 of the turn, for surface mounting enclosures.

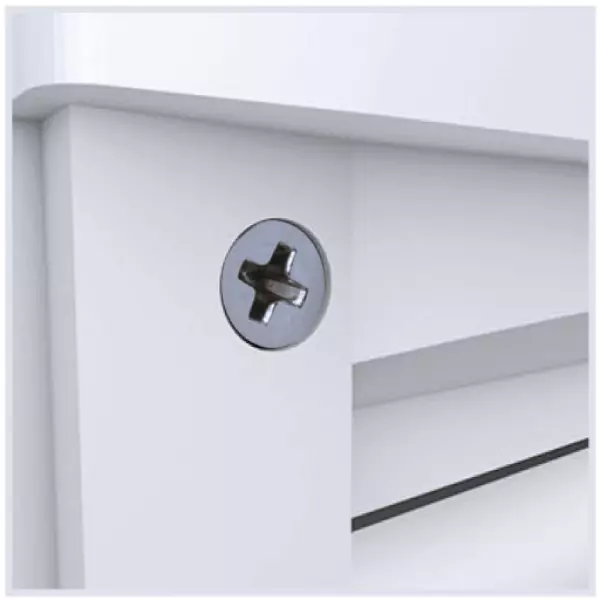

The safe connection between front mask and base using metal screws, for flush mounting enclosures.

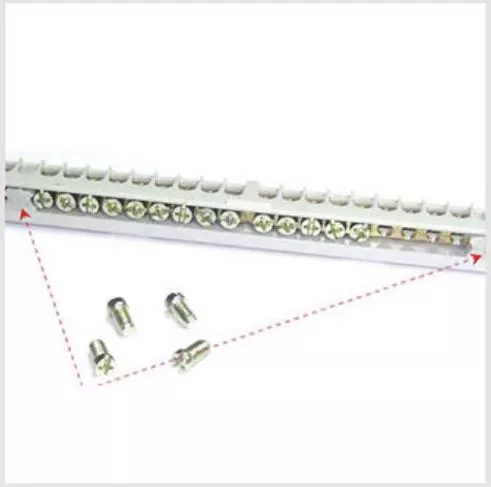

Isolated terminal inside the plastic box, which is made of self-extinguishing material with glow wire test up to 960°C and thermostable up to 120°C.

Plastic holders hold the insulated terminals tight on the position.

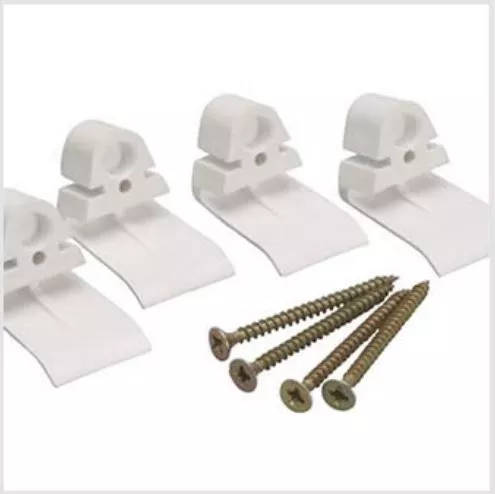

Possibility for mounting on the hollow wall (KNAUF), using additional accessories.

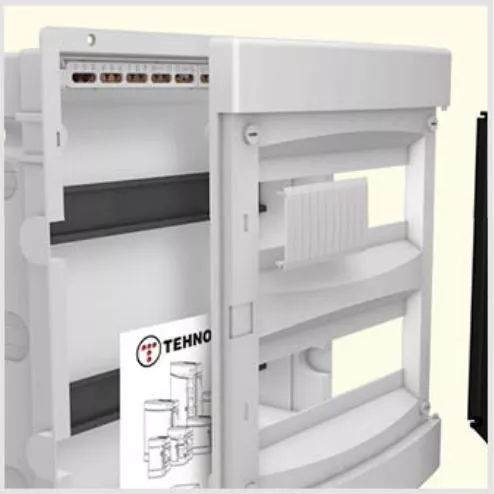

Enclosures are completely assembled with all necessary parts: DIN rail, insulated terminals, cover for unused free space, installation accessories (screws, MCBs labels) and instruction manual.
